Product Description of Metal Random Packing
Metal random packing gives one of the best choices for high performance random packing, with low pressure drop and high efficiency. This specially designed saddle-shape random packing provides a lower pressure drop at the same vapor and liquid loads. It can be effectively used in both high pressure and vacuum towers. Others of its advantages include large effective inter-facial area, high mechanical strength and low cost. Metal saddle rings are therefore used in many distillation and absorption columns all around the world. It is available in various sizes, which give different combinations of efficiency and pressure drop.
| Product Name | Stainless Steel Metal Pall Ring |
| Material | metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area | 62 - 346 m2/m3 |
| Bulk Density | 145 - 345 kg/m3 |
| Feature | Corrosion and Heat Resistance |
| Size | 16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification | ISO9001 |
| Place of Origin | Hebei Province,China |
| Brand Name | Yuanhai |
Specifications of Metal Random Packing
| Model | Pall Ring |
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. |
| Sizes
(mm) | Bulk density
(kg/m3) | Number
(per m3) | Surface area
(m2/m3) | Free volume
(%) |
| 16×16×0.3 | 345 | 201000 | 346 | 95.5 |
| 25×25×0.3 | 214 | 51000 | 212 | 96.2 |
| 38×38×0.4 | 193 | 15000 | 145 | 96.7 |
| 50×50×0.5 | 182 | 6500 | 106 | 97.5 |
| 76×76×0.6 | 142 | 1830 | 69 | 97.4 |
| 89×89×0.7 | 145 | 1160 | 62 | 97.1 |
Advantages of Metal Random Packing
(1) High capacity. New tower design may reduce diameter, while renovate old towers
may increase capacity significantly.
(2) High separation efficiency. Since it has much larger specific surface area compared
to random packing.
(3) Low pressure drop, which leads to reduce energy consumption largely.
(4) Large flexibility, and scale effect is not obvious.
(5) Suitable for all tower diameters.
(6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl- .
Application of Metal Random Packing
Metal Pall ring for Vacuum distillation , Heat transfer as below shows:
Wet scrubbers for gas absorption
Cooling towers for heat transfer
Mist eliminators for liquid particle removal
Gas absorption columns
Gas strippers
Air washers

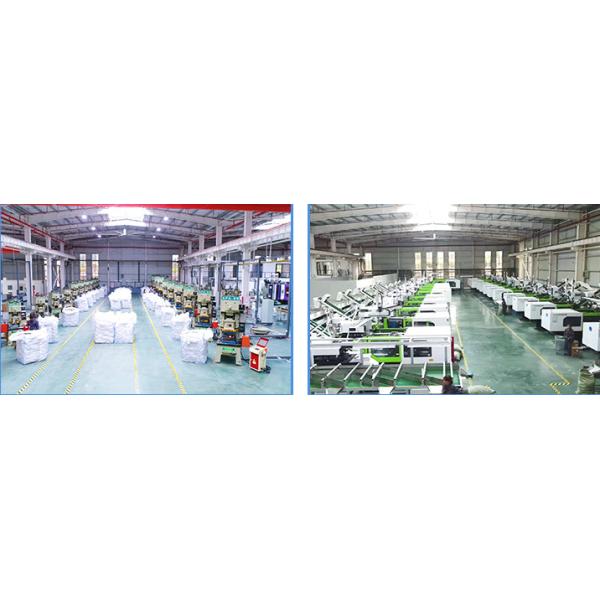

Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
